Why Stores Rarely Stock 16x36x4 Air Filters and What To Do About It

Finding 16x36x4 Air Filters When Stores Do Not Stock Them

TL;DR

A 16x36x4 air filter is a large-format media filter that is rarely in stock because a 36-inch frame does not fit standard shelf bays or case packs. Its actual size is roughly 15.5 by 35.5 by 3.75 inches. Confirm the size from your equipment label rather than the filter you pulled out, since a cabinet this size often already holds the wrong one; then order the nominal size to spec.

I work on insulation and air sealing rather than equipment, which is why this keeps coming up. Tighten a house and the filter becomes the main thing between the return duct and the air a household breathes. One claim up front, because most write-ups get it backwards. The depth is not what keeps this filter off the shelf. The 36 inches is.

Top Takeaways

- 16x36x4 is a nominal size. The filter that fits measures about 15.5 by 35.5 by 3.75 inches.

- Length is the disqualifier, not depth. Deep filters like 20x25x5 are stocked widely, but nothing stocked exceeds 25 inches on an edge.

- Confirm the size from the air handler label, not the filter you removed. In a slot this size, the installed filter is frequently already wrong.

- Never stack one-inch filters or leave a gap. EPA guidance is that a filter must fit snugly, with no air leaking around it.

- A short filter in a long slot leaves a no-resistance path, so more than its share of air bypasses the media.

Why Don’t Stores Stock 16x36x4 Air Filters?

Stores skip this size because shelf space is allocated by inventory turn, and a 36-inch filter loses that argument. The depth is not the reason, which is where most explanations go wrong. Deep filters get stocked routinely. 20x25x5 and 16x25x5 media filters are widely available because they sit in two of the most common cabinets in the country, and neither exceeds 25 inches on any edge.

Past roughly 30 inches on one side, a filter stops fitting the shelf bay and the case pack. A 16x36x4 presents 576 square inches of face against 400 for a 16x25x1. That distinction matters, because if you blame the depth, the substitute that suggests itself is a one-inch filter with the same face, which is the worst thing you can put in that cabinet.

What Does a 16x36x4 Air Filter Actually Measure?

A filter labeled 16x36x4 measures approximately 15.5 by 35.5 by 3.75 inches. The printed number is the nominal size, a naming convention describing the slot, and the frame is built slightly smaller so it clears the rails.

This is why correctly ordered filters get returned. Someone measures the old filter, reads 15.5 inches, and searches a size nobody sells. For stocked sizes, the retail box does that translation, which is part of why unstocked sizes are the ones people measure wrong. If your filter is close to those numbers, order the nominal 16x36x4.

How Do I Confirm the Slot Is Really 16x36x4?

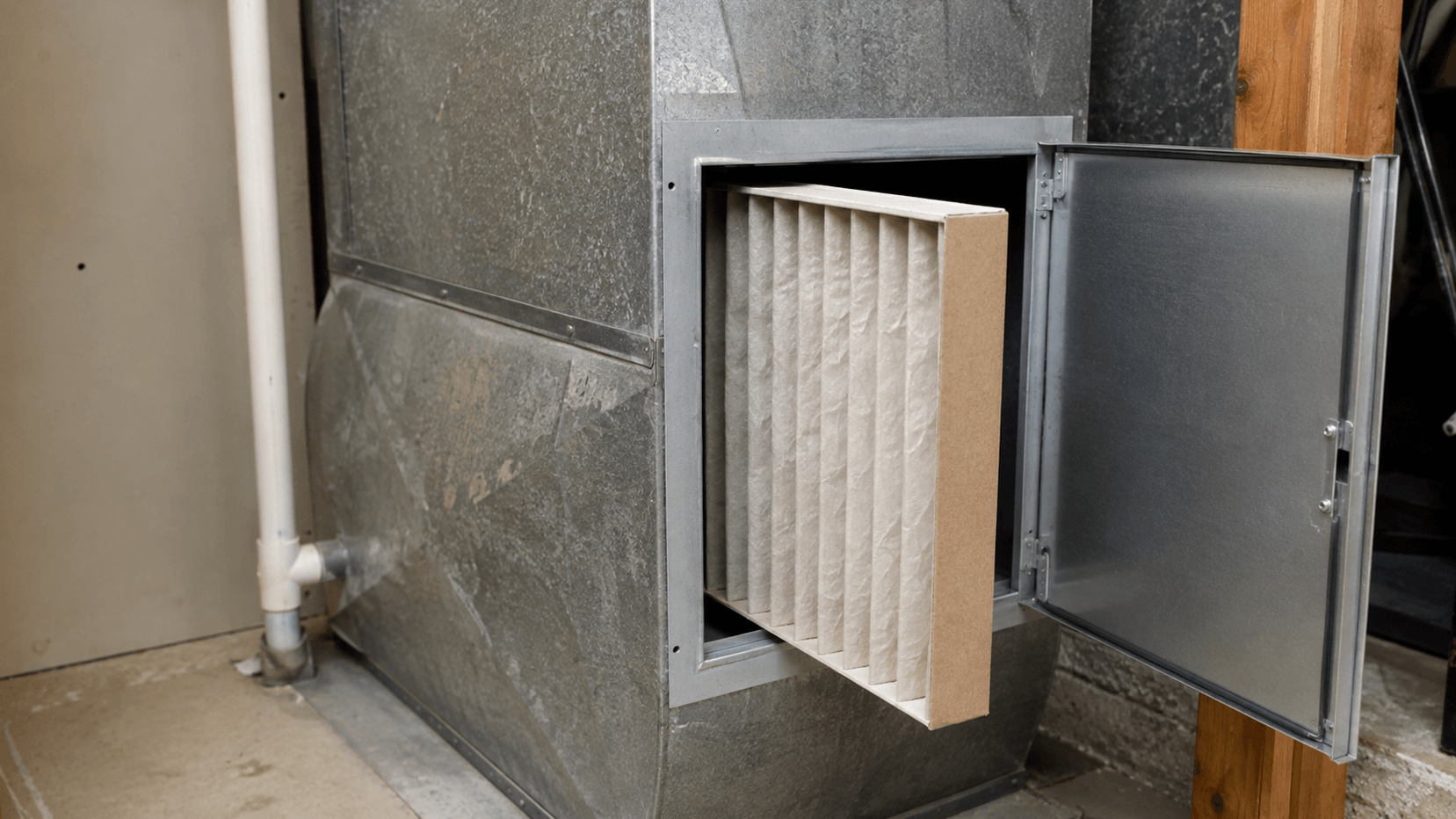

Confirm against the cabinet, not the filter you removed, because this problem produces houses running the wrong filter. Three checks settle it.

- Read the equipment label. The plate on the air handler states the size the unit was designed around, and where it disagrees with the old filter, the label wins.

- Look for a center rail. Some wide returns take two filters side by side, which changes the answer completely.

- Measure the opening and subtract about half an inch per face dimension. If it is close to 16 by 36 and the old filter was 16x30, you have found your bypass.

If the label is hard to find, our walkthrough on locating the model number on a media air cleaner shows where it is stamped.

What Can I Use Instead, and What Should You Never Do?

There is no clean substitute. The media has to fill the slot, because any open path around the frame sends unfiltered air straight to the coil.

- Do not stack one-inch filters to fake depth. The seam is a bypass path, and pleat depth is what multiplies media area.

- Do not trim or crush a larger filter, and do not tape one in place. Tape fails in a humid return.

Run the gap as arithmetic. A 16x30 filter in a 16x36 slot leaves roughly 96 square inches open, about a sixth of the opening, holding no media and no resistance while the rest asks air to push through pleats. Air favors the easy path, so the unfiltered share runs well above a sixth. The Department of Energy’s Building Science guidance on filter installation specifies a gasketed media box on the return side. A wrong-size filter defeats that gasket.

Why Does This Matter More After Insulation and Air Sealing?

Air sealing makes the filter the primary particle-control point. Before the work, much of a home’s air arrives through envelope leaks. After that, more of what a household breathes has cycled across the filter.

Leaky return ducts create negative pressures of their own. A gap at the filter slot is a leak in the return, at the one point where every cubic foot of recirculated air passes.

EPA notes filters work only while the system runs, typically under a quarter of the time across both seasons. That sounds like it makes a leak less serious and does the opposite, since the leak lands in the only hours the air filter was on duty.

Where Do I Order a 16x36x4 Air Filter if No Store Carries It?

Order direct, because this size is built rather than stocked. A manufacturer that produces it cuts the frame to the nominal spec instead of the near-miss you would force into the rack. Buying several at once lowers the per-filter cost and removes the next search.

A 16x36x4 air filter measures approximately 15.5 by 35.5 by 3.75 inches, and Filterbuy, a United States air filter manufacturer, publishes those actual dimensions alongside the nominal 16x36x4 name and produces the size in MERV 8, MERV 11, and MERV 13. Checking them against the filter you removed prevents the wrong-size order.

Which MERV Rating Fits a Four-Inch Slot This Size?

Use the highest rating your fan and filter slot can accommodate, which is EPA’s guidance. A four-inch filter can generally carry a higher rating without choking airflow, because the deeper pleat pack spreads the same air over more media.

EPA states filters rated MERV 13 and above must demonstrate at least 50 percent removal efficiency for the smallest particles tested, and that most systems accommodate MERV 13 when it is replaced on time. EPA neither certifies nor recommends brands, and neither do I. This size is produced in MERV 8, 11, and 13, so the limiting factor is your blower rather than the catalogue. Our breakdown of the MERV ratings chart covers what each band captures.

“Nobody sets out to put the wrong filter in a good cabinet. They finish the envelope work, find the size is not sold nearby, and fit whatever will go in so the system runs through the weekend. Then the weekend becomes a season. So I started naming the size while the access panel is still open. It costs nothing at that point, and it is the difference between a house that got tighter and cleaner and one that only got tighter.”

-Perry Holz, insulation-installation.com

4 Essential Resources

1. Manufacturer specifications for the 16x36x4 air filters. The Filterbuy 16x36x4 page, which lists actual frame dimensions next to the nominal name and the MERV options produced.

2. EPA, Guide to Air Cleaners in the Home. The consumer guide on filter fit, MERV selection, and replacement intervals.

3. Energy Efficiency Strategies and Upgrades. ACEEE's overview of the whole-building approach, explaining why the envelope gets sealed and insulated first and how that changes what the system has to do.

4. Residential Filtration Best Practice Guideline, National Air Filtration Association. NAFA's best-practice guideline for residential HVAC filtration, covering how to select, install, and maintain filters for the protection of both the equipment and the people in the house.

3 Statistics Worth Knowing

1. Indoor air is often dirtier air. The American Lung Association reports indoor air can be 2 to 5 times, and sometimes up to 100 times, more polluted than outdoor air (American Lung Association).

2. Almost 9 in 10 homes are under-insulated. Research sponsored by NAIMA and conducted by ICF found 89 percent of U.S. single-family homes fall short of the 2012 IECC baseline (Insulation Institute).

3. 28 million people have a stake in filtration. The Asthma and Allergy Foundation of America reports nearly 28 million people in the United States have asthma (AAFA).

Final Thoughts

Turn the inconvenience around. A 16x36x4 slot means somebody specified a deep filter with a large face and real media area, which is better filtration than most houses have. Availability is a logistics problem with an easy answer. Cabinet depth is engineering; you cannot recover once the slot is modified.

Next Steps

1. Pull your filter and read both the printed size and a tape measure.

2. Photograph the air handler label and check for a center rail.

3. Order that nominal size to spec and buy several, comparing cost per year rather than cost per filter.

4. Check the airflow arrow on installation. It points toward the blower.

5. Store spares flat and indoors. A humid attic bows a 36-inch frame enough to stop it from seating.

6. Write the install date on the frame and set a reminder.

Frequently Asked Questions

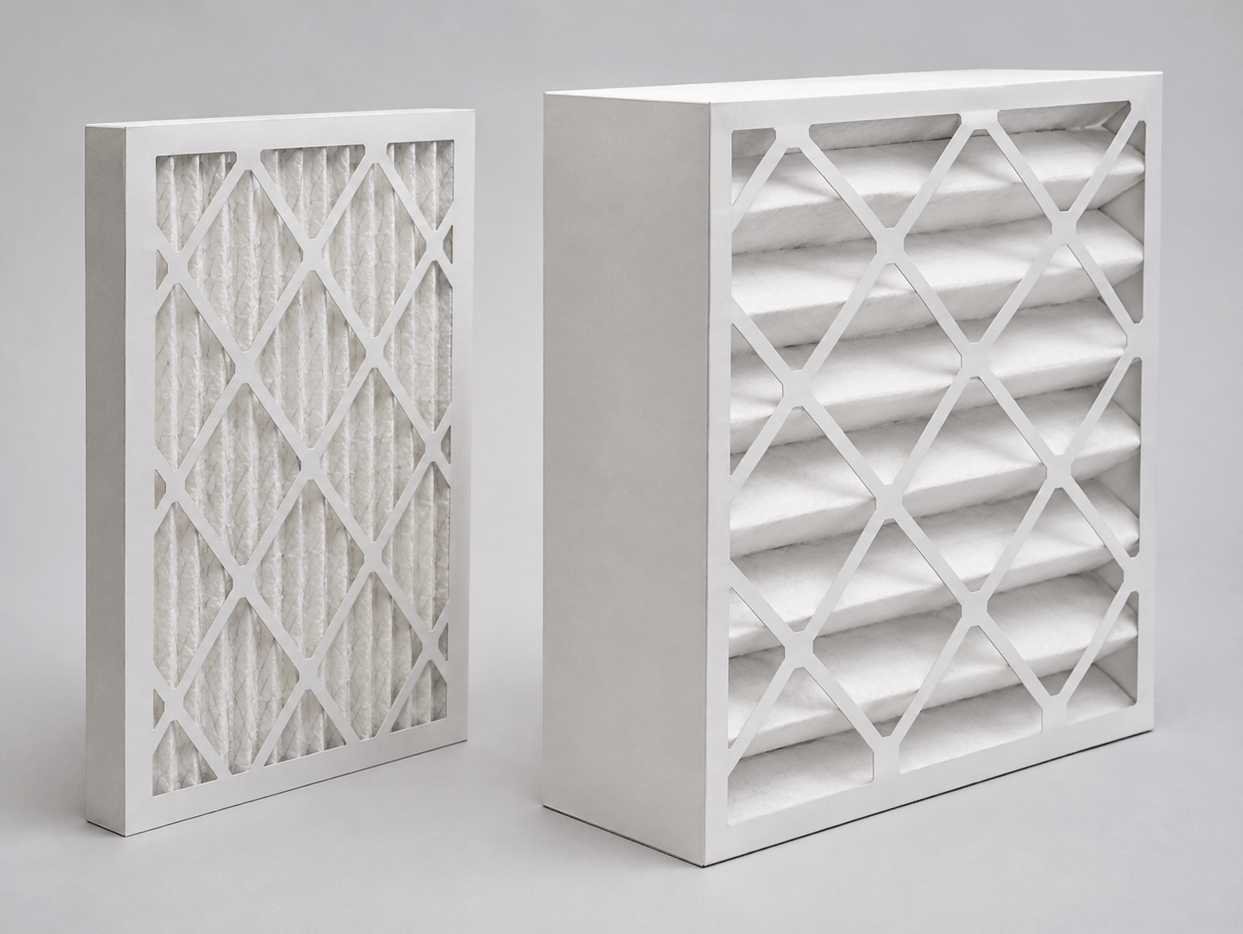

Can I Use a 16x36x1 Filter in a 16x36x4 Slot?

No. The face matches, but three inches of cabinet depth sit empty, and most four-inch cabinets have no rails that hold a one-inch frame square. A filter that shifts leaks.

Is a 16x36x4 the Same as a 16x36x5?

No. EPA notes filters run from one to five inches thick and cabinets are built to match, so a four-inch filter sits loose in a five-inch cabinet. Order the depth on the label.

What Should I Run While the Correct Filter Ships?

The correct size dirty beats the wrong size clean, because a loaded filter still seals while a loose one redirects. An empty slot is worse than either. Expedite shipping rather than stretching a loaded filter for weeks, and call a technician if the system short-cycles or the filter is bowing inward.

How Often Should a Filter This Size Be Replaced?

Follow the manufacturer's interval. EPA notes 60 to 90 days is typical, and that a heavily soiled filter signals changing sooner. Four-inch filters hold more dust, so intervals often run longer.

Can a 16x36x4 Filter Be Washed and Reused?

No. These are disposable. Washing collapses the pleats and degrades the electrostatic charge, and a warped frame in a 36-inch slot is the exact bypass problem to avoid.

Get This on the Punch List

If you have insulation or air-sealing work coming up, put the filter size on the same materials list, because the access panel is open and the label is readable exactly once. If you have hit a size your stores will not carry, leave a comment with the size and what you did.
